DAHAI SOLAR, DHM66D50-705/HJT, Standard Monofacial 210 HJT 705Wp Solar Panel

Product Code: PTG265.02302
Share

DAHAI SOLAR, DHM66D50-705/HJT, Standard Monofacial 210 HJT 705Wp Solar Panel

Product Code: PTG265.02302
Share
DAHAI SOLAR
Dahai Solar, founded in 2011 and backed by a central enterprise, is a renewable energy manufacturer with a 5GW solar module and 10GW silicon production capacity. The company operates advanced automatic production lines for high-efficiency modules ranging from 365W to 670W. A leader in distributed PV in China, Dahai Solar follows the vision "New Energy, New World," focusing on green energy, sustainability, and zero-carbon development. With strong expertise in design, R&D, and manufacturing, it delivers high-quality photovoltaic products and complete energy solutions.
Read more

DAHAI SOLAR, DHM66D50-705/HJT, Standard Monofacial 210 HJT 705Wp Solar Panel

This combination does not exist.

Add to RFQ RFQ

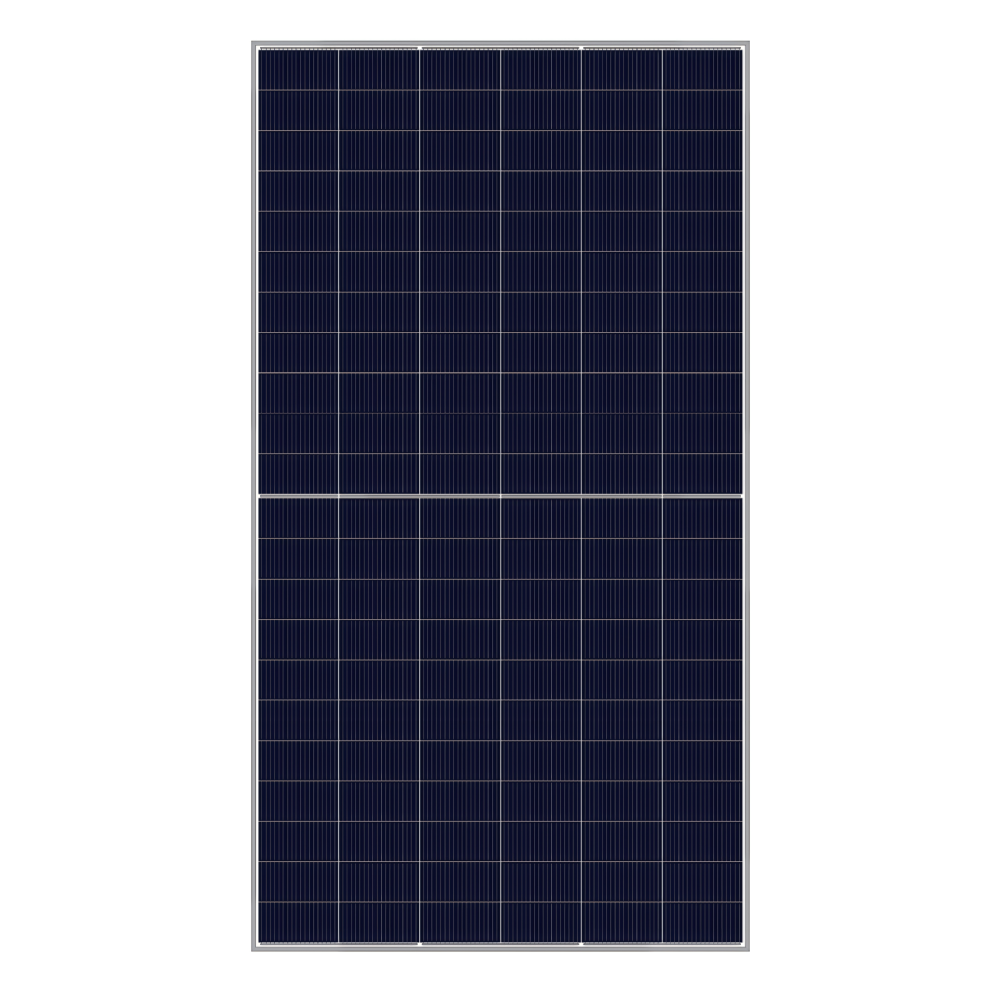

    Product Image
    DAHAI SOLAR, DHM66D50-705/HJT, Standard Monofacial 210 HJT 705Wp Solar Panel

    0.00 € without VAT 0.0 EUR

    1.00 lei

    Add to Cart

    General Description & Application

    SOLAR MODULES – THE HEART OF A PHOTOVOLTAIC SYSTEM

    Offering a wide selection across various performance categories, we consistently provide top-quality products at fair prices. Our portfolio, a testament to our expertise, includes the perfect products for every requirement from renowned manufacturers: high-efficiency, high-performance modules in various sizes.

    Standards

    Solar panels are engineered and tested according to the below standards, as the case may be:
    ISO 9001:2008
    ISO 14001:2004
    ISO 45001:2018
    TÜV Certification
    CE Marking
    CQC Certification
    IEC 61215
    IEC 61730

    The above design is only a sample of the options available, for reference purposes only. Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual. Contact our sales team for other specifications or custom made products.

    Preview TDS
    Download TDS
    Identification
    Brand DAHAI SOLAR
    Product Code DHM66D50-705/HJT
    Design & Mechanical Specification
    Panel Type Monofacial
    Panel Surface Standard
    Panel Weight 38.0 Kg
    Panel Length 2348.0 mm
    Panel Width 1303.0 mm
    Panel Thickness 35.0 mm
    Cell Material Monocrystalline
    Cell Type 210 HJT
    No. of Cells 132.0
    Cell Dimension 6x22
    Glass Type Single
    Encapsulation Type EVA
    Junction Box IP Rate IP68
    Frame Type Silver frame
    Connector Type MC4-EVO2
    Wind Load N/A Pa
    Mechanical Load N/A Pa
    Operating Temperature -40 >< +85 °C
    Electrical Specifications (*STC)
    Nominal Max Power - Pmax 705.0 Wp
    Maximum Operating Voltage - Vmpp 41.7 V
    Maximum Operation Current - Impp 16.91 A
    Open Circuit Voltage - Voc 49.8 V
    Short Circuit Current - Isc 18.09 A
    Module Efficiency - η 22.7 %
    Power Tolerance 0~+5 Wp
    Maximum System Voltage 1500.0 V
    Maximum Series Fuse Rating 35.0 A
    Warranty
    Products Warranty 30.0 yrs
    Performance Warranty 25.0 yrs
