SUNGROW, ST5246KWH-2500U, Energy Storage System, ESS

Product Code: PTG268.00036
Share

SUNGROW, ST5246KWH-2500U, Energy Storage System, ESS

Product Code: PTG268.00036
Share
SUNGROW
Sungrow is a leader in the research and development of solar inverters with the largest dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications, as well as internationally recognized floating PV plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems.
Read more

SUNGROW, ST5246KWH-2500U, Energy Storage System (ESS)

This combination does not exist.

Add to RFQ RFQ
    Product Image
    SUNGROW, ST5246KWH-2500U, Energy Storage System (ESS)

    0.00 € without VAT 0.0 EUR

    1.00 lei

    Add to Cart

    General Description & Application


    ST5246KWH-2500U

    Sungrow is committed to serving the specific and demanding needs of businesses by providing adaptable turnkey solar solutions, ranging from 1.25MW to 6.8MW, which enable our customers to generate clean, affordable energy, with low maintenance, tailored to the needs of the project and environment.
    After 16 years of growth, Sungrow is on the path to becoming the world leader in the supply of ESS equipment and integrated system solutions, with zero security incidents.


    Key Features

    • Highly integrated system with separate inverter and battery sections to allow flexible transportation and on-site installation
    • Higher energy density system with Samsung latest E3 battery, higher efficiency and longer cycle life

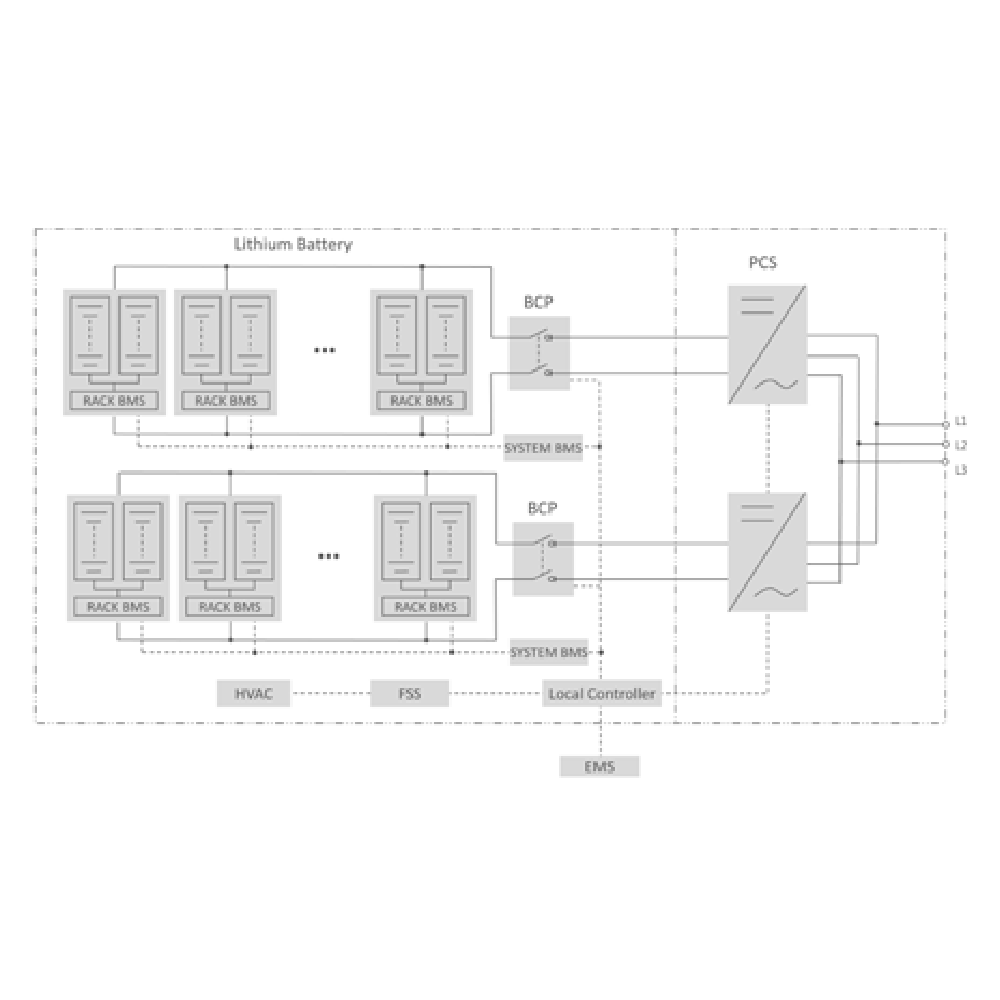

    • Integrated with local controller, HVAC and FSS to enable unified communication, ensure system safety and maximize system efficiency

    The above design is only a sample of the options available, for reference purposes only.

    Our policy of continuous improvement may result in a change of specifications without notice. If any discrepencies might be between the data sheet values and standards, we reserve the rights to make technical changes. Our company will not be held responsible, as all or any of pictures, drawings, weights and dimensions details or other elements in this document are only indicative and must not be considered contractual.

    Contact our sales team for other specifications or custom made products.

    Preview TDS
    Download TDS
    Identification
    Brand SUNGROW
    Product Code ST5246KWH-2500U
    General Specifications
    Width 12192.0 mm
    Height 2896.0 mm
    Depth 2438.0 mm
    Weight 48500.0 Kg
    Operating Temperature -30 >< 50 °C
    Max. Operating Altitude 2000.0 m
    Relative Humidity 0 % ~ 95% %
    IP Rating IP 54
    Battery Chemistry Samsung SDI Mega E3, 3.68V / 100Ah
    Max. Efficiency N/A %
    Electrical Data
    Rated AC Output Power 2500.0 kVA
    Rated DC Power N/A kW
    Storage Capacity 5.246 kWh
    DC Voltage (Nominal) 550.0 V
    DC Voltage Range 484 ~ 605 V
    Max.Short Circuit Current N/A A
    Protection
    Protection

    Heating, Ventilation and Air Conditioning


    Communication
    Communication Interface RS485, Ethernet
    Communication Protocol Modbus RTU, Modbus TCP, IEC 105
